Hefei Dream Plus Co.,Ltd Rice Color Sorter, Grain Color Sorter,Seeds Color Sorter,Beans Color Sorter,Cashew Nuts Color Sorter,
8 Years
| Ask Lasest Price | |
| Brand Name : | Hons |
| Model Number : | S8 |
| Certification : | CE、SGS、ISO9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 260 Set/Sets per Month |
| Delivery Time : | 10-15 Work Days |

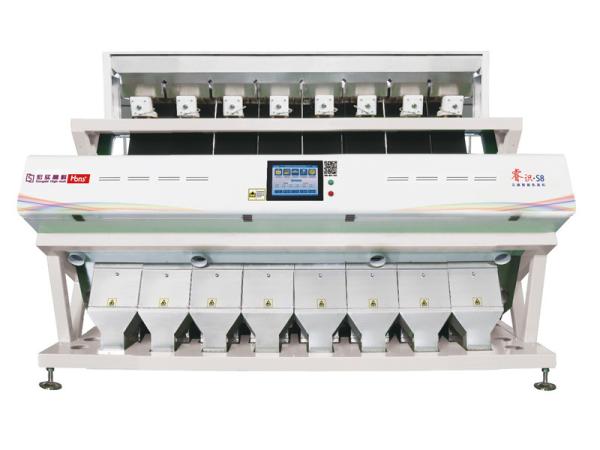

CE /SGS White Buckwheat Color Separator Machine For Snack Production Line
Features:
1. The vibration is even and the frequency is stable, so that the
falling of the material can form a waterfall flow, which will not
overlap the material and reduce the color selection error.
2. Customized rust proof aluminum alloy materials, produce strictly
according to the standard of international food safety ,non-toxic
and harmless.
3. Imported Led lights with more than 10 years service life.
Shadowless led lights can precisely focus the ray on the inspection
line which can identify any light color differences.
4. Dual 5388px full color high resolution imported cameras, able to
recognize the 0.01mm defects.
5. High-frequency ejectors, up to 1200Hz/s. The fastest response
time within 0.6ms. Long service life ejectors, service time 5-10
billion.
6.High-speed transmission system with internet access system, data
standardization and GBE. High technology supports TP/TCP protocol.
Internet remote maintenance as well as performance, malfunction,
and safety management
7. The operative system interface is easy to use. Multiple
languages to choose. One-key intelligent automatic identification
and adjust to meet the requirements of different batches and
different impurity rate of the raw material.
8. Automatic cleaning system with customized time, duration and no
delay to keep the machine working without time waste.
Technical Parameter
| Model | 6SXM-504(CCD) |
| Output(T/h) | 7.0~11.0 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.9 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤4.6 |
| Pressure(Mpa) | 0.4-0.6 |
| Weight(Kg) | 1800(±5%) |
| Diamension(mm) | 3152*1595*2040 |
Sorting example
Raw Material
Accept
Rejection
Packaging & shipping
Delivery Detail:
Shipped in 15 days after payment
Packaging: Plywood case
Our Service
1. The company persists in the “Service is Available at Any Time” guidelines, advocates all staffs to pay close attention to the customer demands
at any time, and endeavors to provide the solutions for the domestic and
overseas customers.
2. At present, the company has more than 30 after-sales service staffs, who offer the service extending to the prefecture level, contact the
customers directly, provide the timely, rapid and considerate service for the customers, and
realize the door-to-door service within 72 hours.
3. Carry out one-year free maintenance and care of the complete machine for the customers, provide the professional training and technical guidance
timely to solve the worries of the customers, and reflect the service mode of fast
response, imely maintenance and tracking coordination fully.
|
|
